Ares 400-SUP

Compact Footprint, Quick Changeover, Recycle Ready Pouches

The Ares 400-SUP stand up pouch machine is a compact, efficient, easy to operate, quick changeover machine designed for short/medium-run production. It runs recycle ready PE, laminated films, paper, and bio-films with ease and a low scrap rate.

Screen Shot 2020-03-09 at 11.49.42 AM

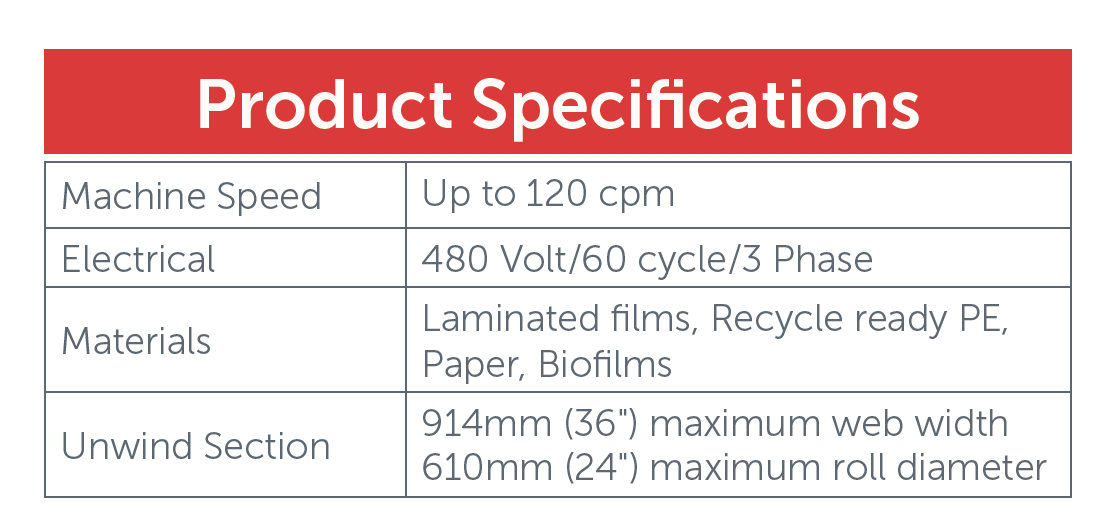

Screen Shot 2020-05-04 at 8.18.53 AM

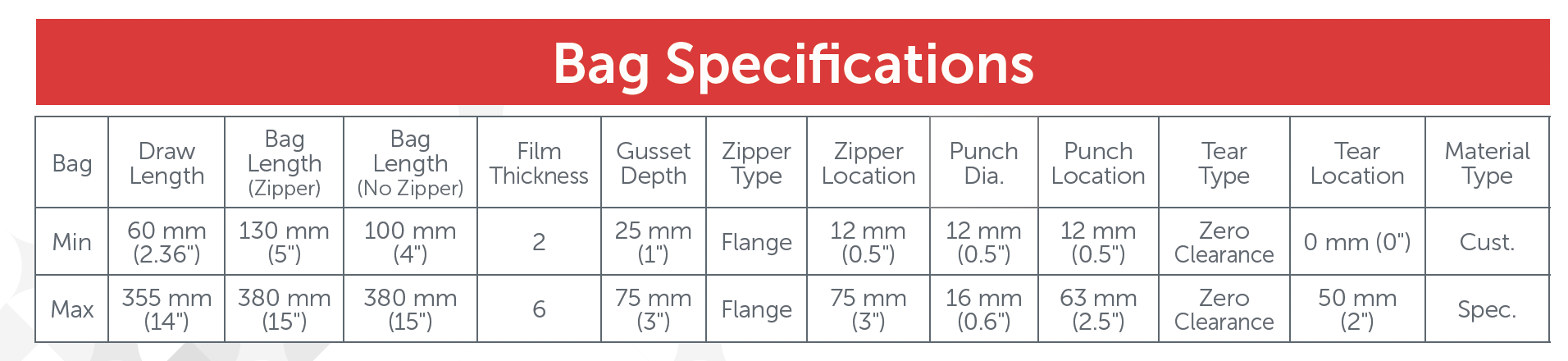

Screen Shot 2020-05-04 at 8.19.37 AM

Contacts

  • Craig Compton

    Vice President Print and Bag Converting

    p. 920-491-6621

    e. craig.compton@pcmc.com

• Servo Driven Guillotine Knife
    - Variable distance double cut
• Pouches formed from one web
• Quick changeover times
• Servo driven sealers
     - Independent servo on each sealer
     - Independent dwell control on each sealer
     - Independent temperature control on each sealer
• Great for short runs
• Recipe storage
• Reclosable

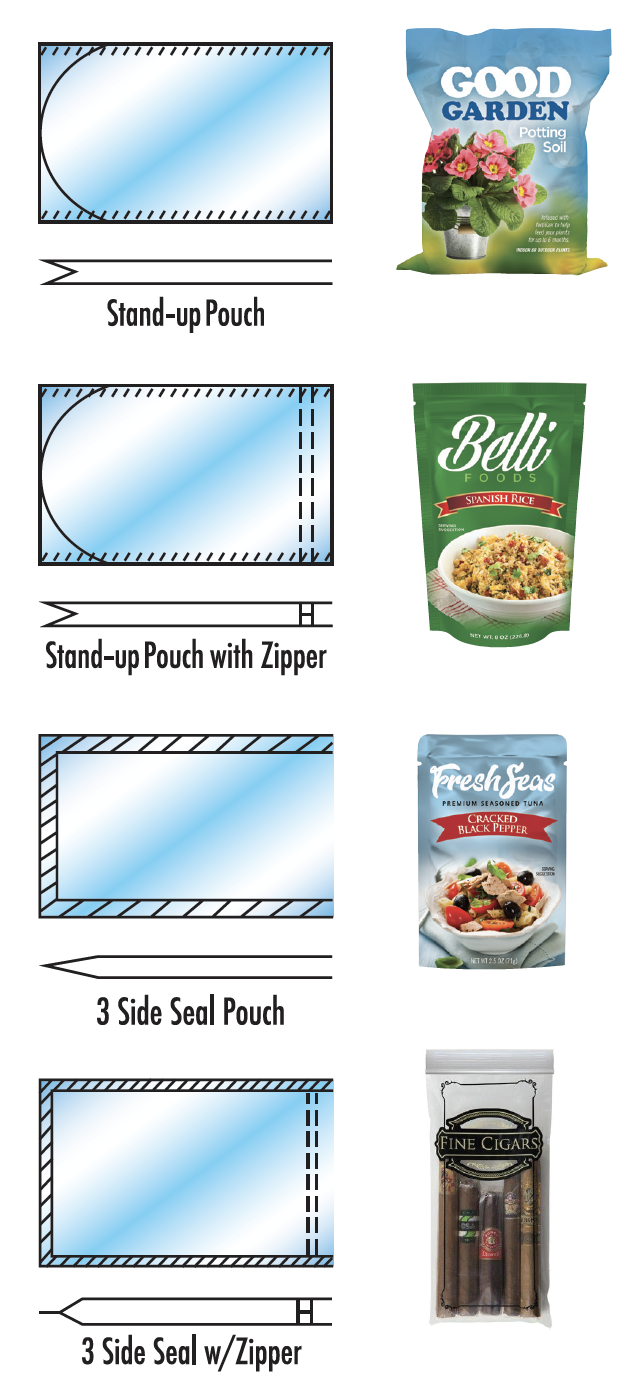

• 1-up SUP and 3-side seal (3SS) configurations
• Compact, quick change, low scrap, simple, and efficient
      - Only 40 feet (12 meters) to thread machine

Optional Attachments:

  • Extended length stack index conveyor
  • Ultrasonic zipper crush
  • Multiple hole punches and shapes
